Description
Hardware
Interfaces
1*10/100/1000Mbps RJ45
Antenna Type
4 * External 3dBi omni-directional antenna
Button
1 * WPS Button
1 * Reset Button
1 * Reset Button
LED Indicator
1 * Signal LED
1 * WPS LED
1 * Power LED
1 * WPS LED
1 * Power LED
Power Supply
12V1A, built-in
Power Consumption
11W (max power consumption)
Dimension
109x78x56.2mm(L x W x H)
Wireless
Wireless Standard
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac
Frequency
5 GHz(11ac)
2.4 GHz
2.4 GHz
Data Rate
5GHz: Up to 1734Mbps
2.4GHz: Up to 300Mbps
2.4GHz: Up to 300Mbps
RSSI
2.4 GHz
11b-1M:-97dBm
11g-54M:-76dBm
11n-20M-MCS7:-74dBm
11n-40M-MCS7:-72dBm
5 GHz:
11a-6M:-95dBm
11n-20M-MCS7:-74dBm
11n-40M-MCS7:-72dBm
11ac-80M-MCS9:-63dBm
11b-1M:-97dBm
11g-54M:-76dBm
11n-20M-MCS7:-74dBm
11n-40M-MCS7:-72dBm
5 GHz:
11a-6M:-95dBm
11n-20M-MCS7:-74dBm
11n-40M-MCS7:-72dBm
11ac-80M-MCS9:-63dBm
Transmission Power
<20dBm
Wireless Modes
Repeater Mode，Access Point Mode
Wireless Security
Default encryption mode: Mix WPA-PSK/WPA2-PSK
WPA algorithm: TKIP
WPA algorithm: TKIP
Others
Certification
CE, FCC
RoHS
RoHS
Plug Type
US
EU
UK
EU
UK
Package Contents

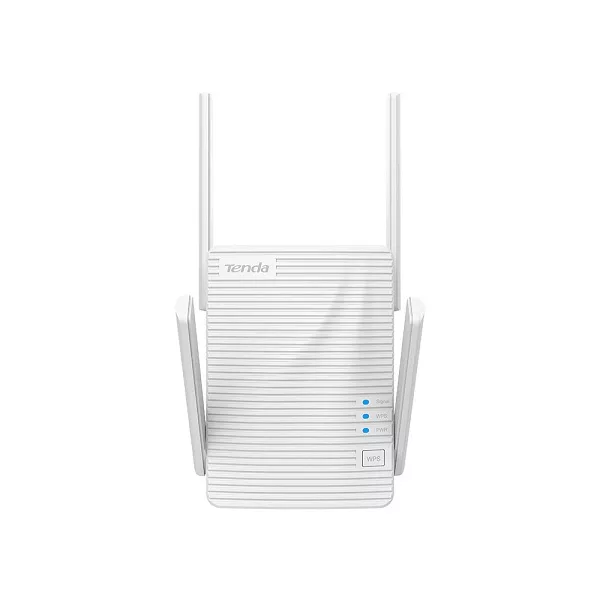

1 * AC2100 Dual Band WiFi Repeater
1 * Quick Installation Guide
1 * Quick Installation Guide
System Tool
Firmware upgrade, Restore factory settings, Login password, and Reboot
Environment
Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Operating Humidity: (10~90)% RH, non-condensing
Storage Humidity: (5~90)%RH, non-condensing
Storage Temperature: -40℃~70℃
Operating Humidity: (10~90)% RH, non-condensing
Storage Humidity: (5~90)%RH, non-condensing
