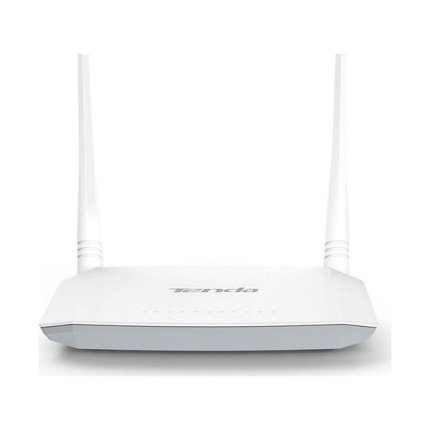

TENDA N300 WI-FI VDSL/ADSL V300 DEUX ANTENNES

Description

V300 combines the function of high speed VDSL2 Modem which provides up to 100Mbps speed downstream, 300Mbps wireless Router and 4 ports switch in one device. 2 external high gain omni-directional antennas ensure wide wireless signal coverage. V300 can support multiple connection types, including phone cable, ethernet cable as well as 3G/4G dongle backup. With Tenda’s unique super-easy design of installation, V300 can access to internet easily. All in all, you can enjoy the Internet surfing, file sharing, audio and Video streaming by one instead of multiple devices.

Specification

Standard and Protocol
IEEE802.11b/g/n
IEEE 802.3, 802.3u
G.994 compliant
Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1 (G.dmt)
ITU-T G.992.2 (G.lite)
ITU-T G.992.3 (G.dmt.bis) Annex A/L/M
ITU-T G.992.5 Annex A
G.993.2 (VDSL2), Supports 17a profile
G.993.5 (G.vector)
G.993.2 Amd 7 (ToD)
G.998.4 (G.inp)
ATM and PTM (dual-priority)

Interface
RJ11 x 1
Power Jack x 1
USB2.0 x 1
10/100Mbps LAN x 3
10/100Mbps WAN/LAN x 1

Antenna
5dBi External Omni directional x 2

Button
Reset(RST) x 1
WPS x 1
WLAN On/Off x 1
Power On/Off x 1

Power Adapter
Input: 100 – 240V 50/60Hz
Output: 12V1.0A

Dimension
157.8 x 105.2 x 29.4mm

LED
PWR, INTERNET, USB, WPS, WLAN, 4/iTV, LAN3, LAN2, 1/WAN, DSL

Wireless Rate
300Mbps

Frequency
2.4GHz

RF Power
<20dBm(EIRP)

Basic Features
Wireless switch enable/disable
SSID Broadcast enable/disable
Country Options
Channel: Auto, 1-13
Bandwidth: Auto, 20MHz, 40MHz
Client List
WDS

Wireless Security
Wireless MAC Filtering
Support 64/128 bit WEP
WPA-PSK/WPA2-PSK
WPS

Connection Type
PPPoE, PPPoA,IPoA, MER, Bridge, 3G/4G Backup

Operating Mode
Wireless Modem Router, 3G/4G Wireless Router, Wireless Router

Advanced Functions
PVC/VLAN Configuration
MAC Clone
DSL Settings
Interface Grouping
QoS
USB Sharing(Samba)
Parental Control
IPTV

3G/4G Backup
Dongle Support
APN setting

USB Sharing
Storage Sharing( Samba, FTP ), Media Server(DLNA)

DHCP
DHCP Server
Client List
Address Reservation

Virtual Server
Port Forwarding
Port Triggering
DMZ
UPnP

Security
IP Filter
MAC Filtering

IPv6
Support 6RD & DS-Lite, IPv6 and IPv4 dual stack

Management
LAN IP Setting
Backup & Update & Restore to factory default
System Logs
SNMP Agent
TR-069 Client
Internet Time
Access Control
Update Software via web, TFTP & FTP
Diagnostics

Other
DDNS, IGMP Multicast, VLAN, 802.1Q, Routing

Temperature
Operating Temperature: 0 ~ 40
Storage Temperature: -40C – 70C

Humidity
Operating Humidity: 10% ~ 90%RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing

Default Settings
IP Address: 192.168.1.1
Login Usernameadmin Login Password: admin

Certification
CEFCCRoHS

Packaging Contents
300Mbps Wireless N VDSL2 Modem Router x 1
Quick Installation Guide x 1
Power Adapter x 1
Ethernet cable (RJ45) x 1
Telephone cable (RJ11) x 2
Splitter x 1
